Ideal for modern spaces and basements: one fixed panel, one sliding sash. Get easy access and save space

The smooth-operating sliding sash invites effortless ventilation and a gentle flow of air

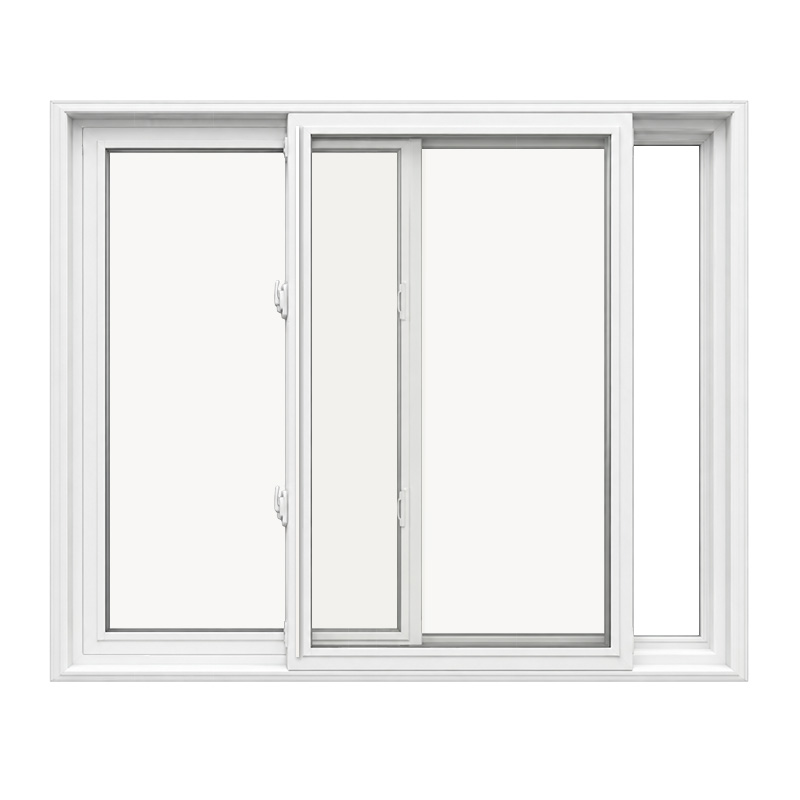

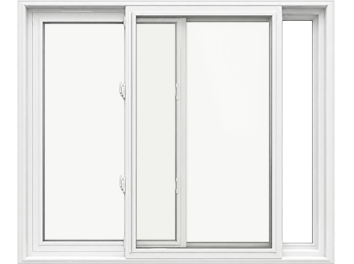

Single Slider Windows

Q: Where does Window Force supply single slider windows in Canada?

Single slider windows are manufactured at our 80,000 sq ft facility in Vaughan, Ontario, and shipped to dealers and projects across Canada, including markets in Halifax, Moncton, Montréal, Québec City, Winnipeg, Regina, Saskatoon, Red Deer, Kelowna, and Victoria.

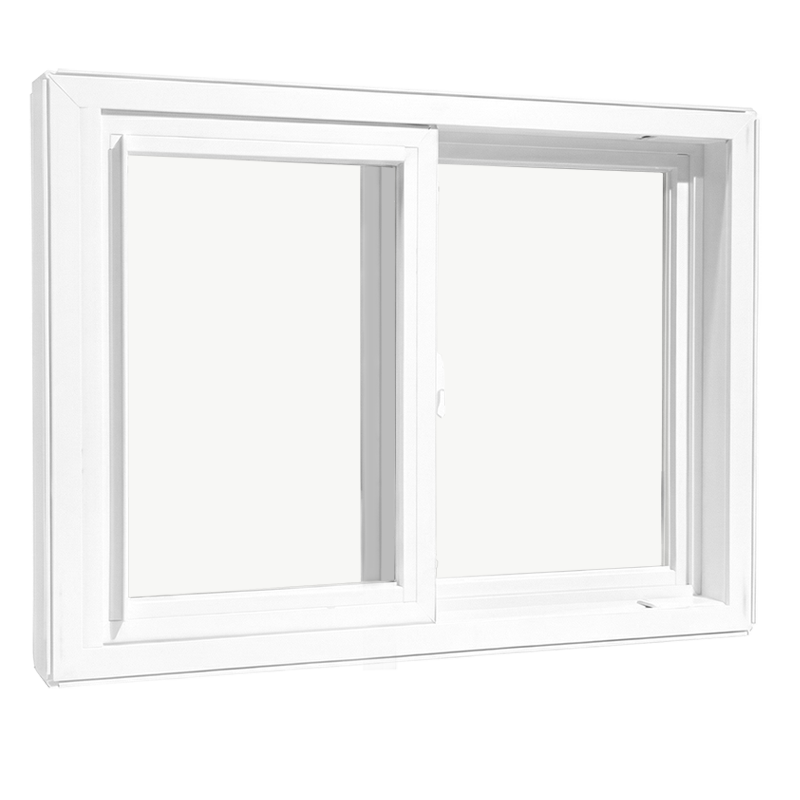

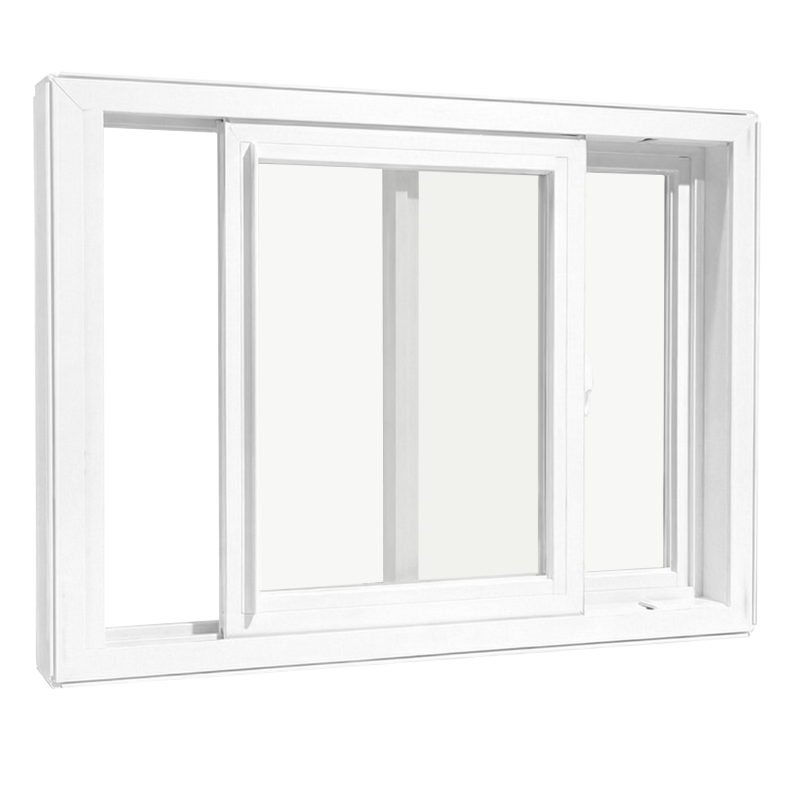

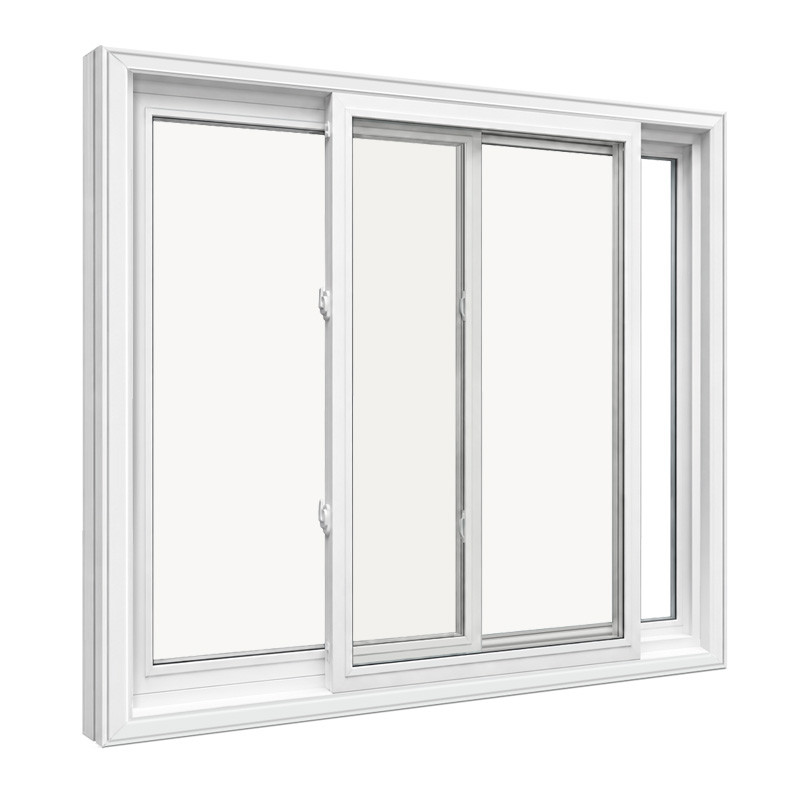

A single slider window has two panels arranged side by side: one fixed and one horizontally sliding. Pushing the sliding sash sideways opens half the window, and an integrated tilt-in function allows the sliding sash to pivot inward for exterior glass cleaning. Window Force single slider windows are built on the Classic Series 3 1/4" platform in lead-free uPVC with welded sash construction, interlocking sash rails, and an integrated roller system for smooth horizontal travel.

Sliding sash

Fixed panel

Sealed unit

Internal chambers

uPVC material

Jamb extensions

Fusion welded corners

Inside trim

Outside vinyl brickmoulds

Wide horizontal
glass area

Smooth and quiet
sliding system

Strong energy
performance

Custom widths
and configurations

Key
Features

One fixed panel, one horizontally sliding sash

Integrated tilt-in function for exterior glass cleaning from inside

Integrated roller system for smooth, low-effort horizontal travel

Interlocking sash rails for consistent seal along the sliding edge

Cam lock engagement hardware

Optional flush bolt system

Multi-chamber lead-free uPVC frame and sash

Welded sash construction, no adhesives or sealants

Double-glazed only — 3/4″ sealed unit

Optional interior removable screen

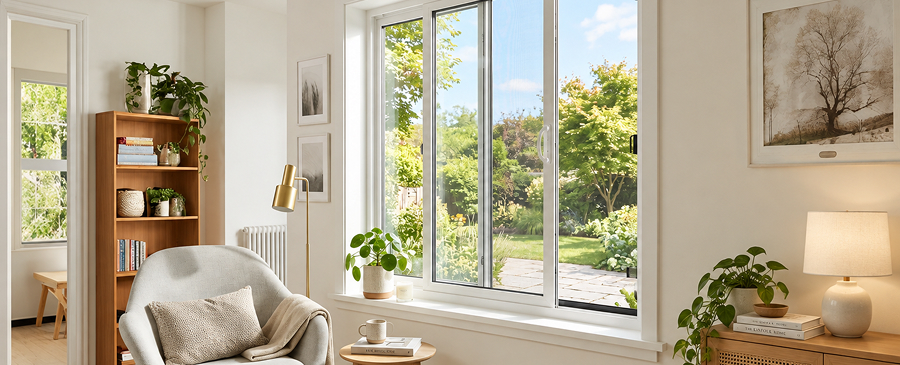

How It Works

The sliding sash runs horizontally on a roller system embedded in the sill and head track. Stainless steel or nylon rollers at the bottom support the sash weight and allow side-to-side travel with minimal friction. The cam lock engages at the meeting stile when the sash is closed, drawing the sliding sash against the fixed panel for a consistent seal. Flush bolts are available at the sill and head for additional security. The tilt-in function allows the sliding sash to pivot inward at the top, rotating into the room and exposing the exterior glass for cleaning.

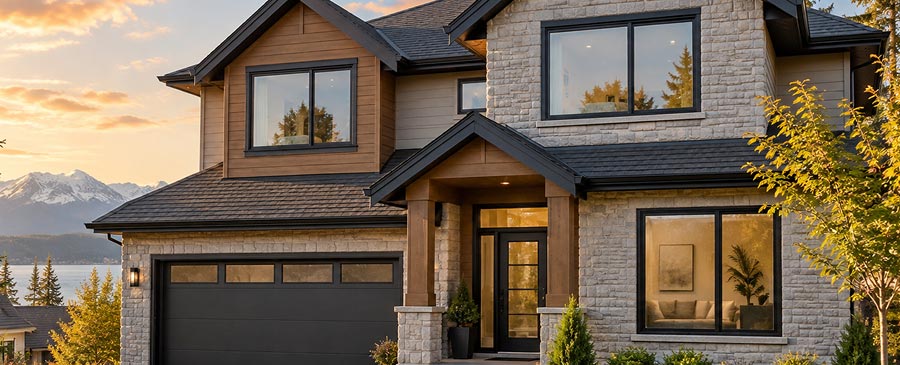

Where It Works Best

Single slider windows are suited for openings that are wider than they are tall — a format common in basement windows, horizontal ribbon windows, and rooms where a low sill line is combined with a wide view. Because the sash travels within the frame plane, no exterior clearance is needed, making sliders appropriate beside decks, patios, or in constrained spaces. A single slider opens half its total width, which is more than a single hung opens vertically for the same frame height, making it efficient in wide, low openings.

Series Availability

Ultraslim Series

Reduced visible profile (2 7/8″) with deeper frame depth (4 9/16″)
Maximized glass area and clean sightlines
Hidden gasket design
Optimized for new construction and larger openings
Contemporary architectural appearance
Available in single slider configuration

Explore the Ultraslim Series

Classic Series

Proven standard-profile frame design (3 1/4″ platform)
Optimized for retrofit and replacement applications
Reliable compatibility with a wide range of installation conditions
Balanced performance and traditional aesthetics
Double-pane only, 3/4″ sealed unit
Triple-pane not available in slider configurations

Explore the Classic Series

Frame & Structural Design

uPVC The window system is manufactured using uPVC vinyl extrusion supplied by Vision Extrusions Group, a North American manufacturer specializing in high-performance vinyl profiles. The material is formulated to provide long-term dimensional stability, impact resistance, and resistance to discolouration under varying environmental conditions.

Internal Chambers These windows have the highest number of internal chambers, giving them out-standing insulation and sound abatement qualities, as well as thermal efficiency and increased sturdiness.

Fusion Welded Corners Provide attractive appearance & eliminate the need for adhesive and sealants. There are no imperfections on the completely watertight and airtight surface, Interior walls are also welded.

Outside Vinyl Brickmould

Inside Trim

Jamb Extensions A choice of maintenance-free uPVC, solid vinyl and wooden jamb extensions, frame moldings and corner blocks are available to enhance inside finish.

Sealed Units Sealed glass unit has 13/16” overall thickness. Depending on the model, glazing and different types and thicknesses can be applied, including double, triple and Low-E glazing (3/4” to 1-1/8)

Hidden Gasket Concealed sealing without visible rubber lines.

Horizontal sash channel geometry with integrated roller system in the sill track; sash travels on low-friction rollers for smooth horizontal operation

Welded sash construction — no adhesives or sealants; fully airtight and watertight at the sash corners

Interlocking sash rails at the meeting stile create a consistent seal between the sliding and fixed panel when the window is closed

Flush bolt system for additional locking at the sill and head where required

Double-glazed only: 3/4″ sealed IGU; triple-pane is not available in slider configurations

Locking System

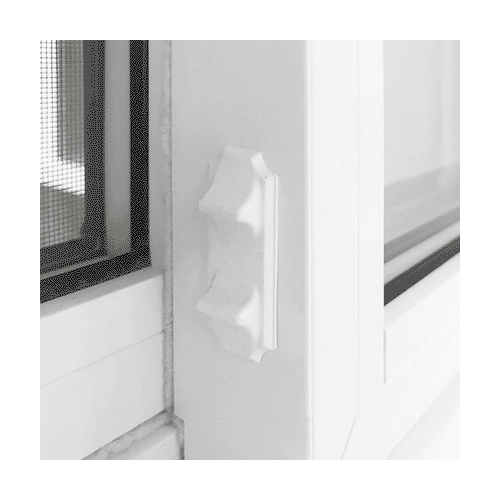

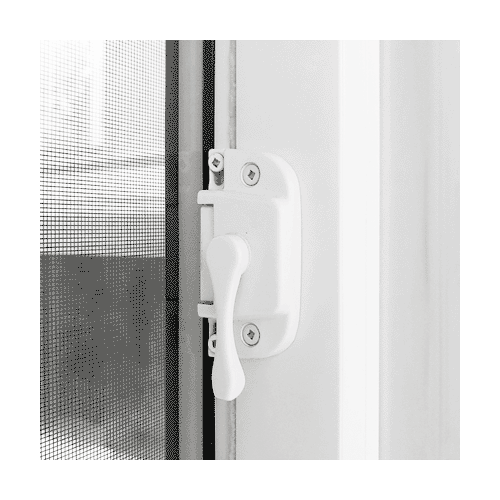

Cam Lock Engagement

The cam lock at the meeting stile draws the sliding sash against the fixed panel frame when engaged, creating a compressed seal at the vertical sash junction. The mechanism provides a clear locked / unlocked indication and requires only a simple lever motion to set or release.

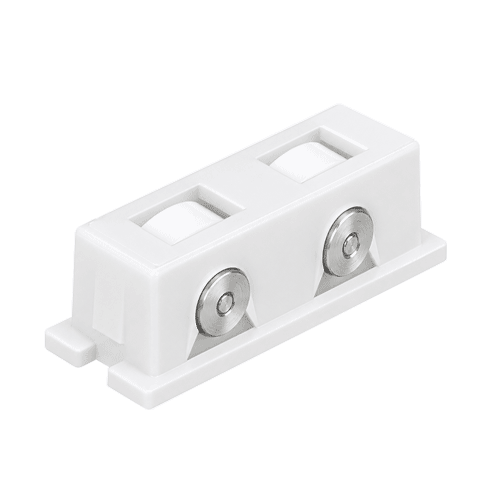

Integrated Roller System

Embedded rollers in the sill track support the sash weight and allow horizontal travel with minimal hand force. The roller system is designed for long-service life without adjustment, and the head track guides keep the sash aligned vertically throughout its travel.

Tilt-In Function

The sliding sash on Window Force single slider windows includes a tilt-in function that allows it to pivot inward at the top, rotating into the room and giving access to the exterior glass surface from inside. The sash disengages from the head track during tilt and re-engages when returned to the vertical operating position.

Hardware Components

Dual cam locks at the meeting stile for sash-to-panel closure

Flush bolt system (where applicable) for sill and head locking

Optional interior
removable screen

Glazing Options

LoĒ-180

Surface 2

High solar heat gain for
north and east elevations

LoĒ-272

Surface 2

Solar control for
south and west elevations

LoĒ-366

Surface 2

Advanced solar control
for high-sun exposures

LoĒ-i89

Surface 4

Interior heat reflection for U-factor reduction

Neat+

Self-cleaning coating
for exterior surfaces

Privacy

Obscured and decorative glass textures available on fixed panels

Safety

Tempered glass where
required by building code

Spacer

Technoform rigid thermoplastic or Super Spacer flexible foam

Only double-pane sealed Insulated Glass Units available for hung windows, 3/4″ overall thickness

Argon gas fill comes standard in every unit to improve the overall thermal performance

Triple-pane is not available in slider window configurations

Configurations

All Window Force window types support standardized customization options across Classic and Ultraslim Series, ensuring compatibility and clean integration across mixed window projects.

Colour Options

At Window Force, we offer a carefully curated palette of durable, fade-resistant colours designed to match any architectural style, from classic to contemporary.

Explore Colour Options

Glass Options

We provide a wide range of advanced glass types tailored for modern window systems. From partially transparent decorative glass with artistic textures for enhanced privacy, to high-performance Low-E coatings that improve energy efficiency.

Explore Glass Options

Jambs, Casing, Brickmoulds

Jambs, casings, and brickmoulds come in a variety of sizes to suit different needs, and they're available in a full color palette to complement your design vision. These components provide versatile options for functional and aesthetic window finishing.

Explore Options

Grills Options

If you want to enhance your windows with decorative pane patterns, we offer a flexible range of interior grill shapes to choose from — from the most common layouts to fully custom designs made to fit your style.

Explore Grills Options

Energy Performance

Glazing Type	U-Factor, W/(m²·K)	SHGC	Energy Rating
Double Pane	1.50 – 1.53	0.53 – 0.55	35 – 38

Performance values vary based on glazing configuration, frame series, and overall window size.

Technical Specifications

Model	SSLO_IS_CLRCARD-ARG90-CARD180#3	SSLO_IS_CLRCARD-ARG90-CARD180#3-ARG90-CLRCARDM	SST_IS_CLRCARD-ARG90-CARD180#3	SST_IS_CLRCARD-ARG90-CARD180#3-ARG90-CLRCARD
U-factor, W/(m²·K)	1.72	1.66	1.73	1.66
Solar Heat Gain (SHGC)	0.53	0.48	0.53	0.48
Energy Rating	31	29	31	30
ENERGY STAR Zones, 2015	1 \| 2	1 \| 2	1 \| 2	1 \| 2
ENERGY STAR Zones, 2010	ABC	ABC	ABC	ABC
Layers of Glazing	2	3	2	3
NRCan Reference	NR9161-12601987-ES	NR9161-12601991-ES	NR9161-12601992-ES	NR9161-12601996-ES
Energy Efficiency Verification Reference	W535-1	W535-1	W535-1	W535-1
U-factor, Btu/(h·ft²·°F)	0.3	0.29	0.3	0.29
Visible Transmittance	0.61	0.56	0.61	0.56
Air Leakage — Infiltration, l/(s·m²)	0.83	0.83	0.66	0.66
Air Leakage — Exfiltration, l/(s·m²)	1.16	1.16	0.92	0.92

Size Limitations

Pane	Width, min — max	Height, min — max	Max Sq.Ft.
Double Glass	19" — 68"	12" — 46"	21 sq.ft.

Actual size limits may vary based on series selection, glass thickness, and project-specific requirements.

Warranty Coverage

Full warranty details

Up to 25 years: 100% factory coverage, 0% dealer/client
25–30 years: 80% factory coverage, 20% dealer/client
Over 30 years: 25% factory coverage, 75% dealer/client

Glass warranty: 10-year non-prorated sealed unit warranty covering seal failure, internal condensation, and visual obstruction between glass panes

Window Force provides warranty coverage on materials and manufacturing defects under normal use and service conditions. Claims are handled directly through Window Force. Inspection and resolution are coordinated by the factory. Repair or replacement is determined based on assessment.

Covered:

Manufacturing defects in window components, sealed glass unit failure under normal conditions, hardware performance under standard use

Not Covered:

Installation-related issues, damage during handling or after delivery, structural movement or excessive humidity, misuse or modification

Frequently Asked Questions

Everything you need to know about the product and billing.

What is the difference between a single slider and a double slider window?

A single slider has one fixed panel and one sliding sash. A double slider has two panels that both slide horizontally. With a single slider, half the window can open; with a double slider, both halves open and can be moved independently, which provides more ventilation control and allows you to direct airflow from either side. An end vent slider is a variation of the double slider with a narrower sliding panel at one or both ends.

Can single slider windows be used in basements?

Yes — the wide, low profile of slider windows makes them a common choice for basement openings. The sash operates within the frame plane with no exterior projection, which works well when the window is close to grade. Egress compliance depends on the clear opening dimensions of the specific unit, so confirm egress requirements for your project before ordering.

Is triple-pane glazing available in single slider windows?

No. Single and double slider windows are double-pane only on both Classic and Ultraslim Series platforms. The roller system and sash construction are designed around double-pane sash weight, and triple-pane is not supported in slider configurations. For triple-pane, casement or awning windows are the correct choice.

How do I clean the exterior glass on a single slider window?

Window Force single slider windows include a tilt-in function on the sliding sash. The top of the sash disengages from the head track and pivots inward, rotating the exterior glass surface into reach from inside the room. This allows exterior glass cleaning without outdoor access. The fixed panel requires exterior cleaning.

What keeps a slider window operating smoothly over time?

The roller system does most of the work — the quality and alignment of the sill-track rollers determine how easily the sash travels. Window Force slider windows use embedded rollers designed for long-service life without adjustment. Keeping the sill track clear of debris and wiping it periodically with a damp cloth maintains smooth operation. Lubrication is generally not required for the rollers, but the cam lock cam and the head track guides benefit from occasional light lubrication.

Are single slider windows suited for wide ribbon window configurations?

Yes. Slider windows can be mulled side-by-side to create wider window bands. In a ribbon configuration, fixed panels are typically placed at the ends or between operable sliders to provide structural support and maintain consistent sightlines. Window Force mulling systems are compatible with Classic Series slider units and allow combination assemblies to be specified for larger openings.

Where does Window Force supply single slider windows in Canada?

Single slider windows are manufactured at our 80,000 sq.ft. facility in Vaughan, Ontario, and shipped to dealers and projects across Canada, including markets in Halifax, Moncton, Montréal, Québec City, Winnipeg, Regina, Saskatoon, Red Deer, Kelowna, and Victoria.
